Bayonet Type Connectors: Reliable and Quick-Connect Solutions for Modern Applications

In many industries, fast and secure connections are crucial for efficient operations. One of the most widely used types of connectors for these purposes is the bayonet type connector. This quick-connect mechanism is known for its ease of use, reliability, and ability to maintain secure connections under various conditions. Bayonet connectors are found in a range of applications, from electronics to aviation and industrial machinery.

In this blog, we will explore the characteristics of bayonet type connectors, how they work, their advantages, and the many applications that benefit from these versatile connectors.

What is a Bayonet Type Connector?

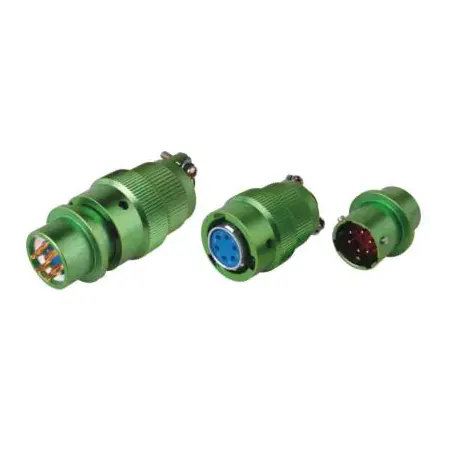

A bayonet type connector is a mechanical connector that uses a pin-and-groove design to enable a quick and secure connection. Unlike threaded connectors that require screwing or twisting, bayonet connectors employ a "push-and-twist" mechanism. This type of connector consists of two main components: a male plug with protruding pins and a female socket with L-shaped slots.

The connection is made by aligning the pins with the slots, inserting the plug into the socket, and then twisting it to lock the pins into place. This simple and fast process ensures a tight connection that remains secure even under vibration or movement.

How Does a Bayonet Connector Work?

The bayonet connector mechanism is named after the way bayonets were attached to rifles—by inserting the blade into a socket and twisting it to lock it in place. This same principle is applied to bayonet electrical connectors and mechanical couplings.

Here’s how the bayonet mechanism works step-by-step:

1. Insertion: The male connector, with its pins or studs, is inserted into the female connector’s slots.

2. Twisting: Once the pins are inside the slots, the user twists the male connector. This action moves the pins into the horizontal grooves of the female connector.

3. Locking: As the twisting occurs, the pins slide into the grooves, locking the connection securely in place.

This push-and-twist locking mechanism provides a reliable and fast connection that is resistant to loosening due to vibration or other movements. It is highly suitable for applications where speed and durability are important.

Advantages of Bayonet Type Connectors

The bayonet connector has several key advantages that make it popular in a wide variety of industries:

1. Quick and Easy Installation

One of the main advantages of bayonet type connectors is how quickly and easily they can be connected and disconnected. The push-and-twist mechanism allows for fast installation and removal without the need for tools, making it ideal for situations where time is critical.

2. Secure Connection

Bayonet connectors provide a highly secure connection that resists accidental disconnection due to vibration, movement, or impact. This makes them especially useful in environments where connectors are subjected to physical stresses, such as in industrial machinery, automotive systems, or military applications.

3. Durability

Many bayonet connectors are designed to withstand harsh environments, including exposure to dust, moisture, and extreme temperatures. This durability ensures that the connection remains intact even in challenging conditions, making it suitable for both indoor and outdoor use.

4. Vibration Resistance

The locking mechanism of bayonet connectors is highly resistant to vibration, which is why they are frequently used in vehicles, aircraft, and heavy machinery. Unlike threaded connectors, which can loosen over time due to vibration, bayonet connectors remain secure and reliable.

5. Versatility

Bayonet connectors come in various sizes, materials, and configurations, making them highly versatile. They can be used in electrical, optical, and mechanical connections, making them ideal for applications ranging from data transmission to power supply.

Applications of Bayonet Type Connectors

Because of their reliability, speed, and resistance to harsh conditions, bayonet type connectors are used in many industries and applications:

1. Aerospace and Military

In aerospace and military applications, secure and vibration-resistant connections are critical for safety and performance. Bayonet connectors are widely used in aircraft systems, communication equipment, and military vehicles because of their robust locking mechanism and ability to withstand extreme conditions.

2. Automotive

The automotive industry relies on bayonet connectors for electrical connections in vehicles, including lighting, sensors, and power systems. These connectors are valued for their quick installation, making them ideal for assembly lines and field repairs. Their ability to resist vibrations ensures that they remain securely connected even in high-motion environments.

3. Industrial Equipment

Bayonet connectors are commonly used in industrial equipment and machinery where reliable electrical or mechanical connections are essential. Their durability and resistance to environmental factors make them ideal for heavy-duty applications in manufacturing plants, construction sites, and more.

4. Telecommunications

In the telecommunications industry, bayonet connectors are often used for connecting coaxial cables, fiber optics, and other communication systems. Their fast installation and high reliability make them suitable for use in data centers, broadcasting equipment, and satellite systems.

5. Medical Devices

Medical equipment often requires quick and reliable connections, and bayonet connectors are frequently used for medical devices like diagnostic machines, patient monitoring systems, and imaging equipment. The secure locking mechanism ensures that connections remain stable during use.

6. Consumer Electronics

Bayonet connectors are also found in consumer electronics, including audio-visual equipment, cameras, and power cords. Their ease of use and secure connection make them a popular choice for products where users frequently need to connect and disconnect cables.

How to Choose the Right Bayonet Type Connector

When selecting a bayonet connector for your specific application, consider the following factors:

- Material: Choose a material that suits the environment. For example, stainless steel or brass connectors are ideal for harsh conditions, while plastic connectors may be suitable for lighter-duty indoor applications.

- Size: Ensure the connector fits the cables or components it will be connecting. Bayonet connectors come in a range of sizes, so measure the space and connection points carefully.

- Environmental Resistance: If your application involves exposure to water, dust, or extreme temperatures, choose a connector that is designed to withstand these elements.

- Vibration Resistance: For applications that involve significant movement or vibration, look for connectors that are specifically designed to maintain a secure connection under these conditions.

Conclusion

Bayonet type connectors offer a fast, reliable, and durable solution for a wide range of applications, from aerospace and automotive industries to telecommunications and consumer electronics. Their push-and-twist locking mechanism ensures a secure connection, even in environments with heavy vibration or exposure to harsh elements.

Whether you’re designing a high-tech military communication system or simply connecting cables in your home audio setup, bayonet connectors provide the perfect balance of speed, security, and simplicity.
