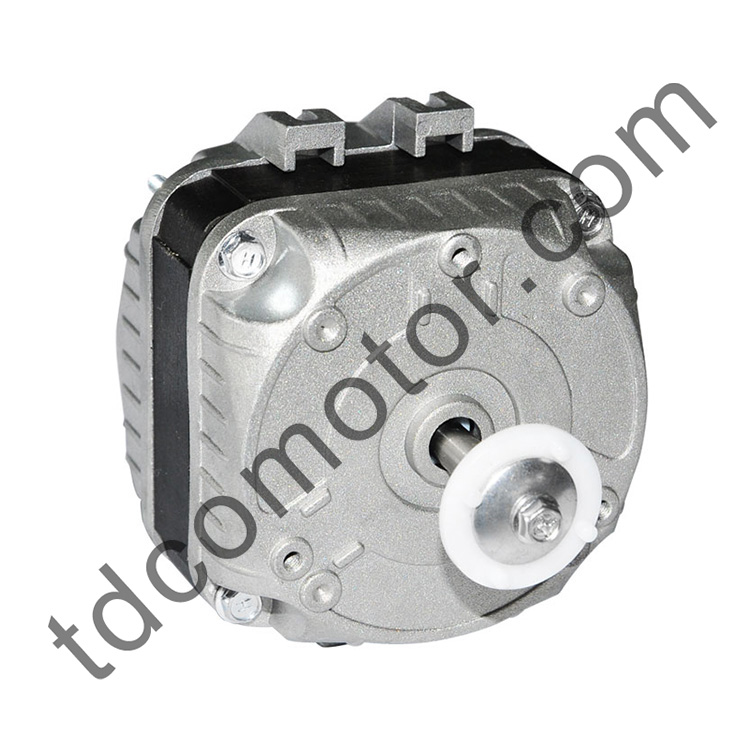

Characteristics of shaded pole fan motors

2023-12-29

A shaded pole fan motor is a type of single-phase induction motor commonly used in applications where low power and simple design are sufficient. These motors are often found in small fans, appliances, and other devices that require a low-cost, reliable motor. Here are key features and characteristics of shaded pole fan motors:

1. Single-Phase Induction Motor:

  - Shaded pole fan motors operate on single-phase AC power, making them simple and cost-effective for a variety of applications.

2. Rotor Design:

  - The rotor (rotating part) of the motor is a simple, shorted-circuit aluminum or copper loop.

  - The rotor is not equipped with a separate winding or a squirrel cage rotor found in more complex motor designs.

3. Stator Design:

  - The stator (stationary part) has a core made of laminated steel.

  - The core contains coils, and part of the pole faces is shaded or coated with a material that increases electrical resistance.

4. Starting Mechanism:

  - Shaded poles create a phase shift in the magnetic field during starting, which provides an initial rotation to the rotor.

  - The shading coil delays the build-up of the magnetic field on one side of the pole, creating a rotating field that starts the motor.

5. Simplicity:

  - Shaded pole motors are known for their simple design, with fewer components compared to more sophisticated motor types.

  - This simplicity makes them cost-effective and reliable for applications with low power requirements.

6. Low Starting Torque:

  - Shaded pole motors typically have low starting torque, which may limit their use in applications where higher starting torque is required.

7. Low Efficiency:

  - While these motors are simple and cost-effective, they tend to have lower efficiency compared to more advanced motor types.

8. Applications:

  - Shaded pole fan motors are commonly used in small appliances, such as:

    - Desk fans

    - Refrigerator fans

    - Ventilation fans

    - Bathroom exhaust fans

    - Oven hood fans

9. Size Range:

  - Shaded pole motors are available in a range of sizes, making them suitable for different applications with varying power requirements.

10. Speed Control:

   - Shaded pole motors are generally designed for constant speed applications and may not have built-in speed control features.

11. Maintenance:

   - These motors are relatively maintenance-free due to their simple design. However, if a motor fails, replacement is often more economical than repair.

It's important to note that while shaded pole fan motors are suitable for certain applications, they may not be appropriate for high-performance applications or those requiring precise speed control. As technology advances, other motor types with improved efficiency and performance, such as brushless DC motors, are becoming more prevalent in certain applications.
