Detailed description of Metal Round Military Standard Connector

2024-06-28

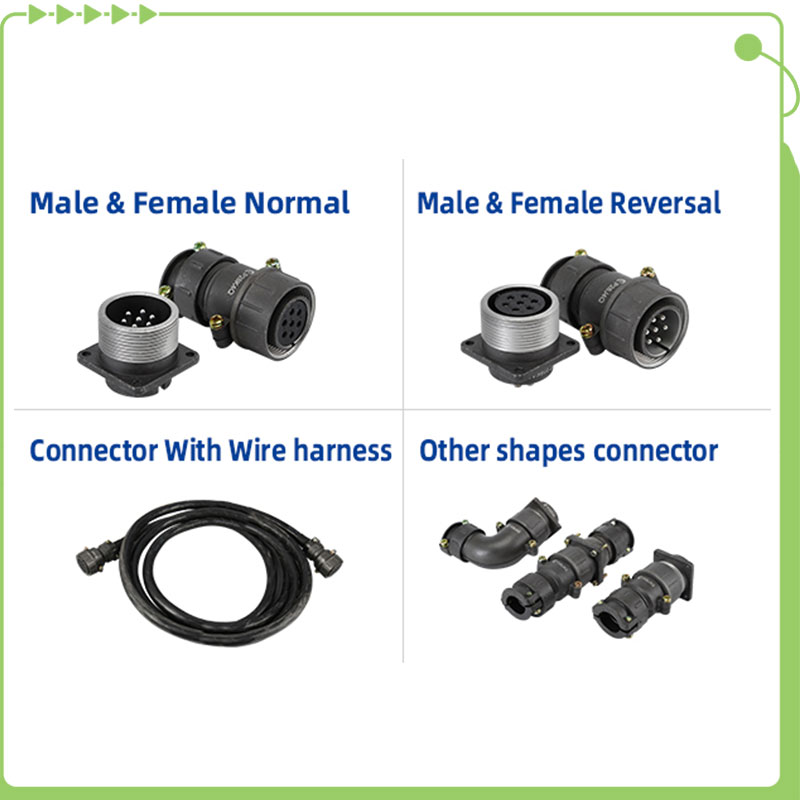

Metal round military standard connectors, often referred to as MIL-SPEC connectors, are robust, reliable, and versatile connectors designed to meet the stringent requirements of military and aerospace applications. These connectors are built to withstand harsh environmental conditions, including extreme temperatures, moisture, vibration, and mechanical stress. Here’s a detailed description:

Components and Design:

1. Shell:

  - Material: Typically made from aluminum, stainless steel, or other durable metals to provide protection and durability.

  - Finish: Often coated with cadmium, nickel, or other protective finishes to enhance corrosion resistance and electrical conductivity.

  - Shape: Round in shape to facilitate easy mating and alignment.

2. Contacts:

  - Material: Usually made of copper alloy with gold or silver plating to ensure excellent electrical conductivity and resistance to corrosion.

  - Types: Can include pin and socket contacts, with various configurations to suit different applications.

  - Density: Available in high-density arrangements to accommodate multiple connections in a compact space.

3. Insulator:

  - Material: Made from high-grade plastic or composite materials to provide electrical insulation and maintain the integrity of the connector.

  - Design: Precision-molded to securely hold the contacts in place and prevent short circuits.

4. Coupling Mechanism:

  - Threaded: Provides a secure and stable connection by screwing the connectors together.

  - Bayonet: Allows for quick and easy mating and unmating with a simple twist-and-lock motion.

  - Push-Pull: Offers easy connection and disconnection by pushing and pulling the connectors.

5. Seals:

  - Gaskets and O-rings: Made from rubber or silicone to provide moisture and dust protection, ensuring the connector is sealed against environmental ingress.

  - Environmental Sealing: Often rated to meet IP (Ingress Protection) standards for water and dust resistance.

6. Backshell and Strain Relief:

  - Backshell: Provides additional protection and support to the cable and connectors.

  - Strain Relief: Ensures that the cable is securely held and reduces stress on the electrical contacts, preventing damage from tension and bending.

Types of Metal Round Military Standard Connectors:

1. Circular Connectors:

  - Commonly used in military and aerospace applications, characterized by their circular shape and robust design.

  - Examples include MIL-DTL-38999, MIL-DTL-5015, and MIL-DTL-26482 connectors.

2. Hermetic Connectors:

  - Designed to provide an airtight seal, often used in high-pressure or vacuum environments.

  - Typically feature glass-to-metal or ceramic-to-metal seals.

3. RF and Coaxial Connectors:

  - Used for high-frequency applications, ensuring minimal signal loss and interference.

  - Examples include MIL-PRF-39012 and MIL-STD-348 connectors.

Applications:

1. Military:

  - Used in communication systems, weapons systems, radar, and avionics.

  - Designed to withstand battlefield conditions, including shock, vibration, and extreme temperatures.

2. Aerospace:

  - Employed in aircraft, satellites, and spacecraft for reliable connectivity in harsh environments.

  - Ensures signal integrity and reliable performance under high-altitude and high-speed conditions.

3. Industrial:

  - Used in heavy machinery, robotics, and automation systems where durability and reliability are critical.

  - Suitable for environments with exposure to chemicals, moisture, and mechanical stress.

4. Marine:

  - Employed in naval vessels and submarines, where resistance to corrosion from saltwater and moisture is essential.

  - Ensures reliable operation in harsh marine environments.

Advantages:

1. Durability: Built to withstand harsh environmental conditions, including temperature extremes, moisture, and mechanical stress.

2. Reliability: Designed to ensure secure connections with minimal risk of disconnection or failure.

3. Versatility: Available in various configurations and sizes to suit different applications and requirements.

4. Sealing: Excellent sealing properties to protect against environmental ingress, ensuring long-term performance.

5. High Performance: Provides excellent electrical and signal integrity, essential for critical applications.

Considerations:

1. Cost: Higher cost compared to standard commercial connectors due to their specialized design and materials.

2. Weight: Metal connectors can be heavier than their plastic counterparts, which may be a consideration in weight-sensitive applications.

3. Compatibility: Ensure compatibility with existing systems and standards to avoid connectivity issues.

4. Maintenance: Regular inspection and maintenance are necessary to ensure long-term reliability and performance.

Maintenance:

1. Regular Inspection: Check for signs of wear, corrosion, or damage to the connectors and contacts.

2. Cleaning: Clean contacts and shells to remove dirt, debris, and contaminants that may affect performance.

3. Lubrication: Apply appropriate lubricants to threaded and coupling mechanisms to ensure smooth operation and prevent corrosion.

4. Replacement: Replace worn or damaged connectors to maintain reliable performance and prevent system failures.

Metal round military standard connectors are essential components in military, aerospace, industrial, and marine applications, providing reliable and durable connectivity under the most demanding conditions. Their robust design and high-performance characteristics make them a preferred choice for critical applications where failure is not an option.
