Information about Insulated Flag Female Disconnects

2024-07-28

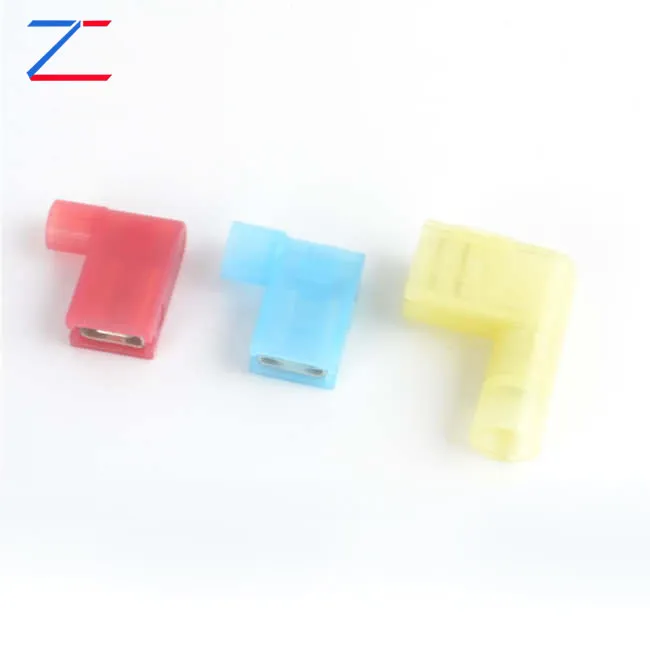

Insulated flag female disconnects are electrical connectors used to create secure and insulated connections between wires or terminals in various electrical applications. These connectors are specifically designed to be used in situations where a quick and reliable connection is required, often in automotive or industrial settings. Here’s an overview of insulated flag female disconnects:

Key Features:

1. Design:

  - Flag Shape: The connector has a "flag" shape, which typically means it has a flat, wide terminal that resembles a flag, designed for easy connection and disconnection.

  - Female Terminal: Features a female terminal that receives the male flag terminal for a secure connection.

2. Insulation:

  - Insulated Housing: Comes with an insulated plastic or rubber housing that covers the terminal to prevent accidental contact and reduce the risk of short circuits.

  - Color Coding: Often color-coded to indicate different wire sizes and to match the corresponding male connectors.

3. Material:

  - Conductors: Made from conductive materials such as copper or brass to ensure good electrical conductivity.

  - Insulation: The insulation material is typically heat-resistant and durable to withstand harsh conditions.

4. Size and Compatibility:

  - Wire Gauge: Available in various sizes to match different wire gauges and electrical needs. Common sizes include 6-8 AWG, 10-12 AWG, and 14-16 AWG.

  - Compatibility: Designed to work with corresponding male flag terminals and are often used in automotive and industrial wiring systems.

Applications:

1. Automotive:

  - Wiring Connections: Used in automotive wiring systems to connect various electrical components such as lights, sensors, and switches.

  - Quick Disconnects: Allows for easy disconnection and reconnection of electrical components for maintenance or repairs.

2. Industrial:

  - Equipment Wiring: Used in industrial equipment and machinery to connect wires and components securely.

  - Panel Wiring: Common in control panels and distribution boards where multiple connections are required.

3. Consumer Electronics:

  - Electrical Appliances: Used in various electrical appliances and devices where secure and insulated connections are needed.

Benefits:

1. Ease of Use: Allows for quick and easy connection and disconnection of wires, facilitating maintenance and repair tasks.

2. Insulation: Provides electrical insulation to prevent accidental contact and protect against short circuits.

3. Secure Connection: Ensures a secure and reliable electrical connection, reducing the risk of connection failures.

Installation:

1. Crimping: Requires crimping tools to attach the flag female disconnect to the wire. Proper crimping ensures a secure connection and good electrical contact.

2. Insertion: The flag terminal is inserted into the female disconnect and secured, often with a locking mechanism to prevent accidental disconnection.

Maintenance:

1. Inspection: Regularly inspect the connectors for signs of wear, damage, or corrosion. Replace any connectors that appear damaged or corroded.

2. Cleaning: Keep connectors clean and free from debris to maintain good electrical conductivity and prevent connection issues.

Selection Considerations:

- Wire Gauge: Ensure the connector is compatible with the wire gauge used in your application.

- Insulation Type: Choose connectors with appropriate insulation for the environmental conditions of your application.

- Application: Select connectors based on the specific requirements of your electrical system, including the need for quick disconnects or high durability.

Insulated flag female disconnects are essential for creating reliable and insulated electrical connections in various applications. Proper installation and maintenance are crucial to ensure optimal performance and safety.
