What Is a Gun Drill and Why Is It Used in Precision Deep Hole Drilling?

A Gun Drill is a specialized cutting tool designed for drilling deep, straight holes with a high degree of accuracy and surface finish. Unlike standard twist drills, gun drills have a unique design that allows them to efficiently remove chips and maintain stable cutting conditions in deep-hole drilling applications.

How Does a Gun Drill Work?

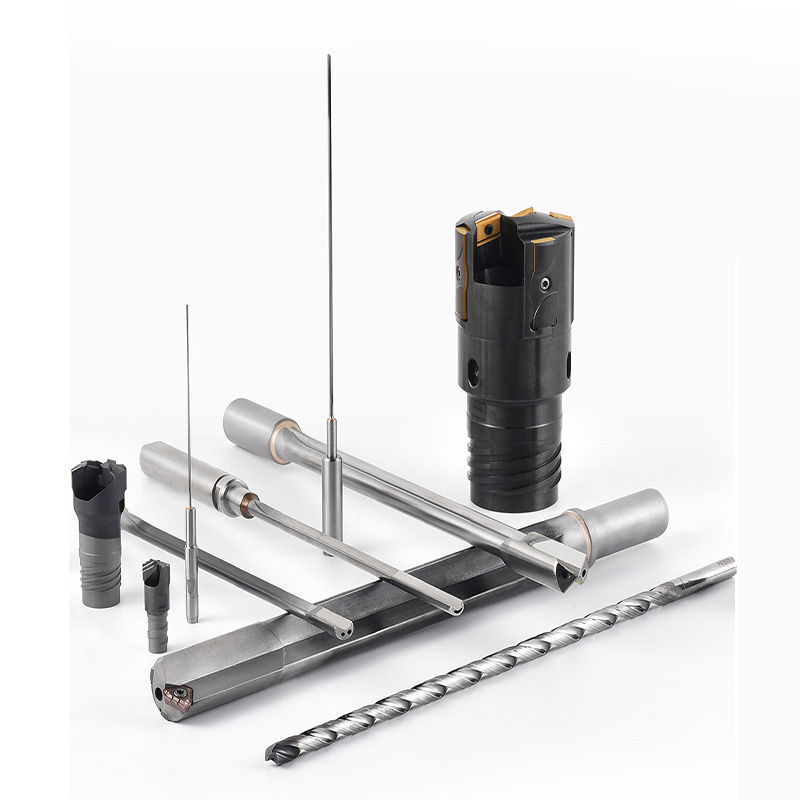

Gun drills feature a long, slender body with a single straight flute and a coolant channel running through the center. During operation, coolant is pumped through this internal channel to the cutting tip, flushing out chips and cooling the tool. The flute simultaneously evacuates chips from the hole, preventing clogging and overheating.

Key Features of Gun Drills

Deep Hole Capability: Can drill holes with depth-to-diameter ratios often exceeding 50:1.

Coolant Through Tooling: Internal coolant supply enhances tool life and hole quality.

Single-Flute Design: Provides efficient chip removal and stable cutting.

Precision and Straightness: Produces holes with tight tolerances and excellent surface finish.

Durable Materials: Typically made from carbide or high-speed steel with coatings for wear resistance.

Common Applications

Aerospace Industry: Manufacturing engine components and structural parts.

Automotive: Drilling fuel injection systems, transmission parts, and engine blocks.

Medical Devices: Creating precise holes in surgical instruments and implants.

Mold and Die Making: Producing cooling channels and ejector pin holes.

Oil and Gas: Fabrication of downhole components.

Advantages Over Traditional Drilling Methods

Superior hole quality with minimal need for reaming.

Extended tool life due to effective cooling and chip evacuation.

Ability to drill deep holes with consistent accuracy.

Reduced risk of tool breakage in challenging materials.

Considerations When Using Gun Drills

Requires specialized machinery with coolant pressure and delivery systems.

Appropriate selection of tool material and coating based on workpiece.

Optimal feed rates and speeds are critical for tool performance.

Regular maintenance to prevent coolant clogging and tool wear.

Conclusion

Gun drills are indispensable tools for industries requiring precise, deep-hole drilling with excellent surface finish and dimensional accuracy. Their unique design and cooling capabilities enable efficient machining of complex parts, making them a preferred choice for demanding manufacturing tasks.
